APQ125-6
Engine | 125cc air-cooling Single-cylinder four Stroke, full automatic, electric start (125cc available) |
Bore x Stroke | 52.4 x 49.5mm |
Max power | 5.0kw/7500r/min |
Max torquer | 6.5n.m/5000r/min |
Transmission | chain drive |
Ignition mode | CDI |
Frame | heavy duty steel frame |
Handlebar | steel handlebar with protector |
Exhaust | steel exhaust pipe |
Front suspension | high performance double front shock absorber |
Rear suspension | single spring rear shock absorber |
Brake system | front drum brake and rear disc brake |
Max load | 150kgs |
Tank capacity | 3L |
Wheel | steel wheels front/rear 8inch,with rim cover |
Carton size | 1370X820X760mm |
Loading qty | 20FT: 33pcs; 40HQ: 88pcs |
Introuduce:

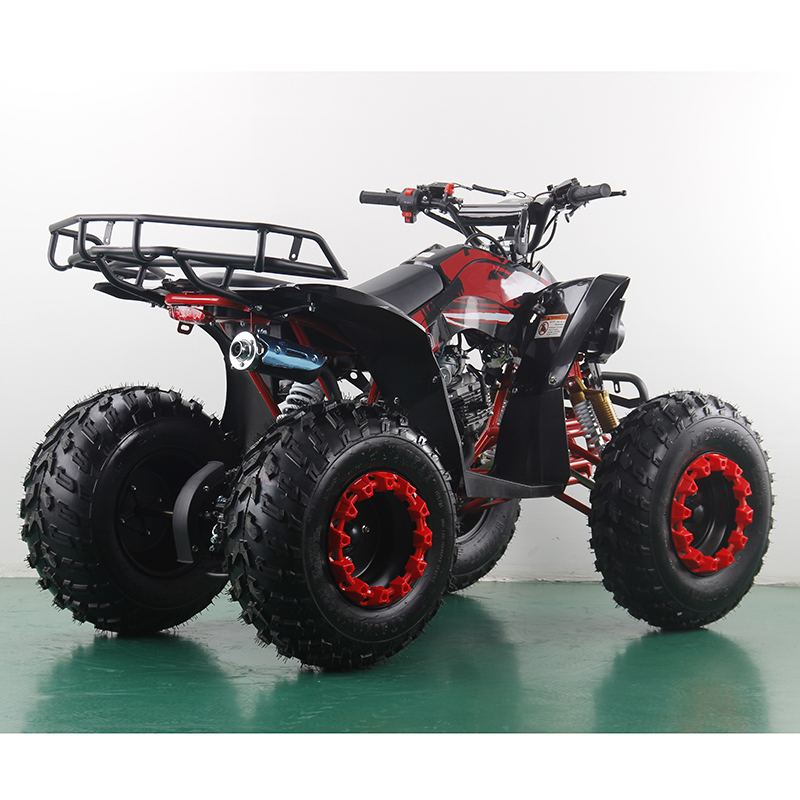

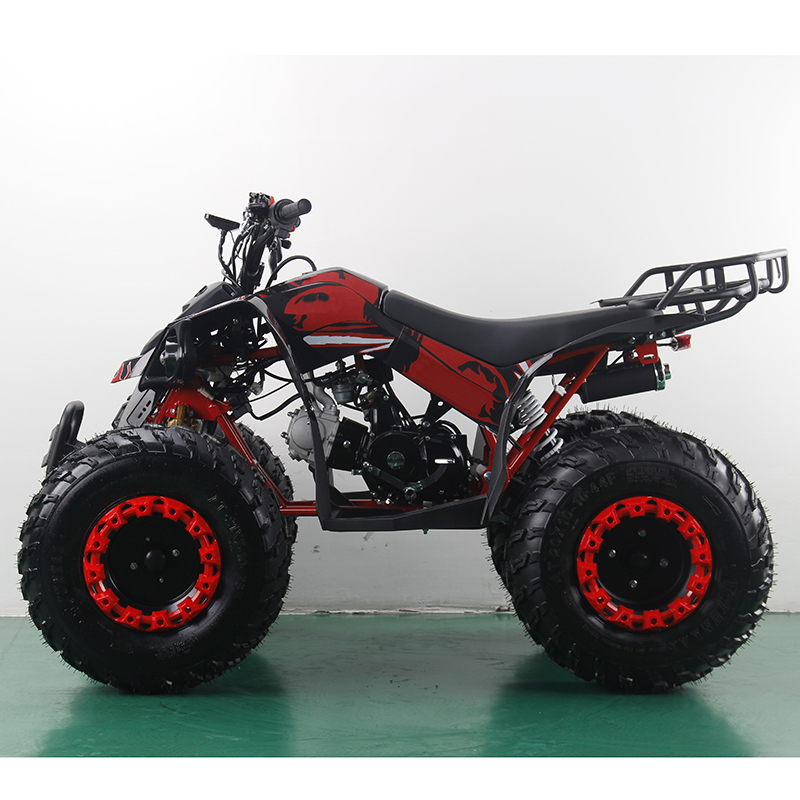

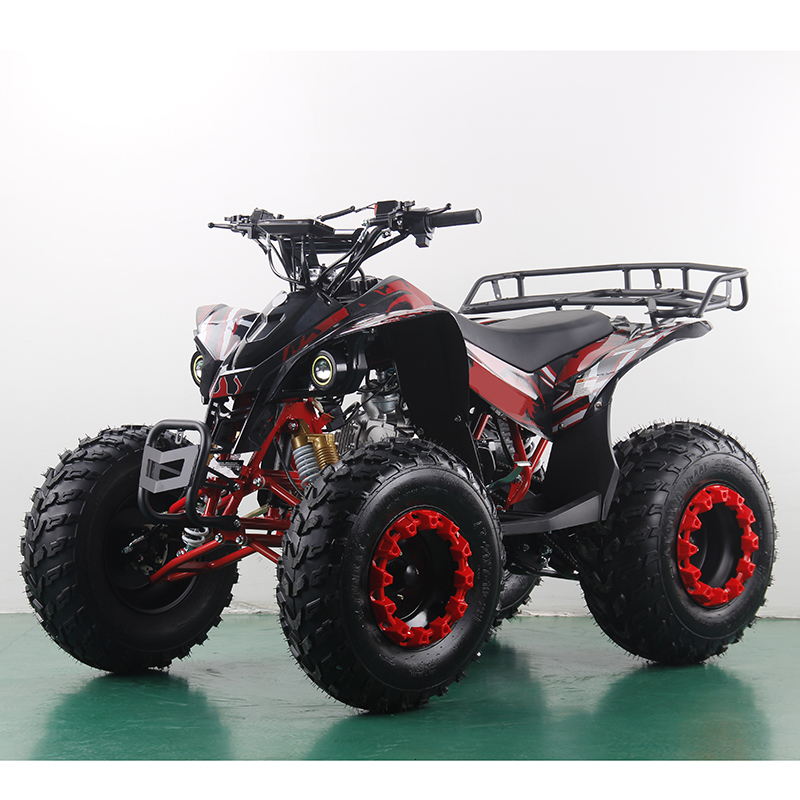

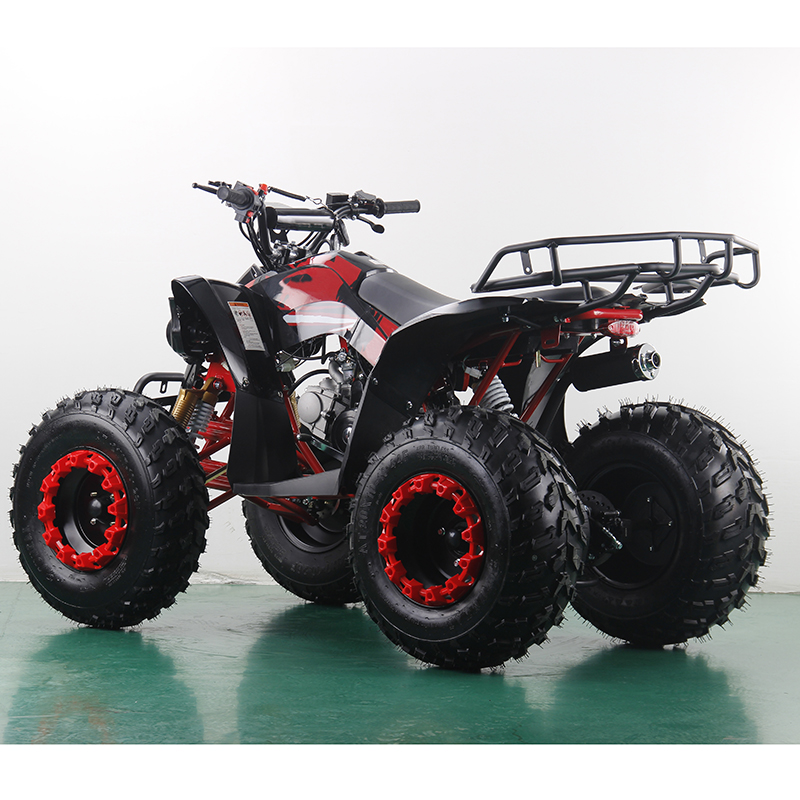

New 125cc quad 125cc atv 110cc quad bike is the newest design in 2022 is middle size for teenager, It is suitable for riders with a height of about 120cm to 180cm.
This is the newest design model in 2022. It is very popular in market. The front headlight design inspired by eagle eyes, match good stable 3+1 or 1+1 engine performance, nice plastic design, strong heavy duty fixed frame, deep teeth wide tire with rim cover,high performace oil pressure front and rear shock, and soft seat can bring you into good ride feeling. So please don’t hesitate to contact us to talk more.

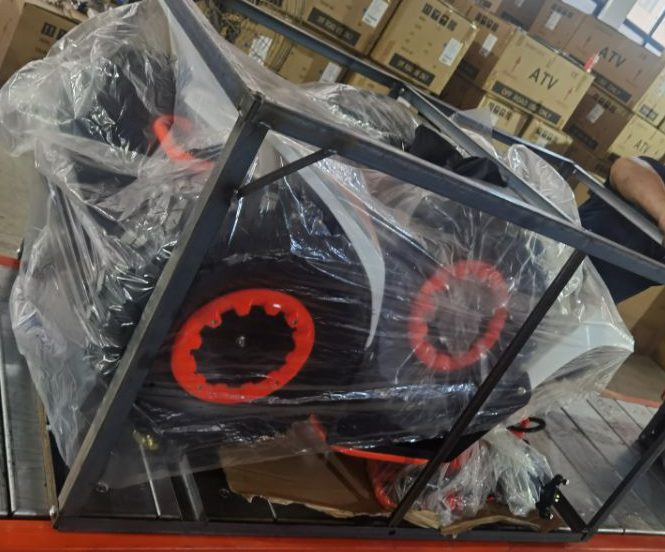

How to pack for the ATV?
Steel frame + carton. Please see photos.
Take off front and rear wheel, handlebar, front and rear rack to pack, It is easy to install. You can see our user manual. It is in more details.
APAQ motorcycle Cares: Read Owner’s Manual and all on-product warnings. ATVs can be hazardous to operate. For your safety, Always wear a helmet, eye protection, and protective gear. Never carry a passenger. Never ride under the influence of drugs or alcohol. Never ride on public roads or pavement. Be extra careful on difficult terrain. All children under the age of 16 riding ATVs should always have adult supervision at all times. APAQ motorcycle also recommends that all ATV riders take a training course.
