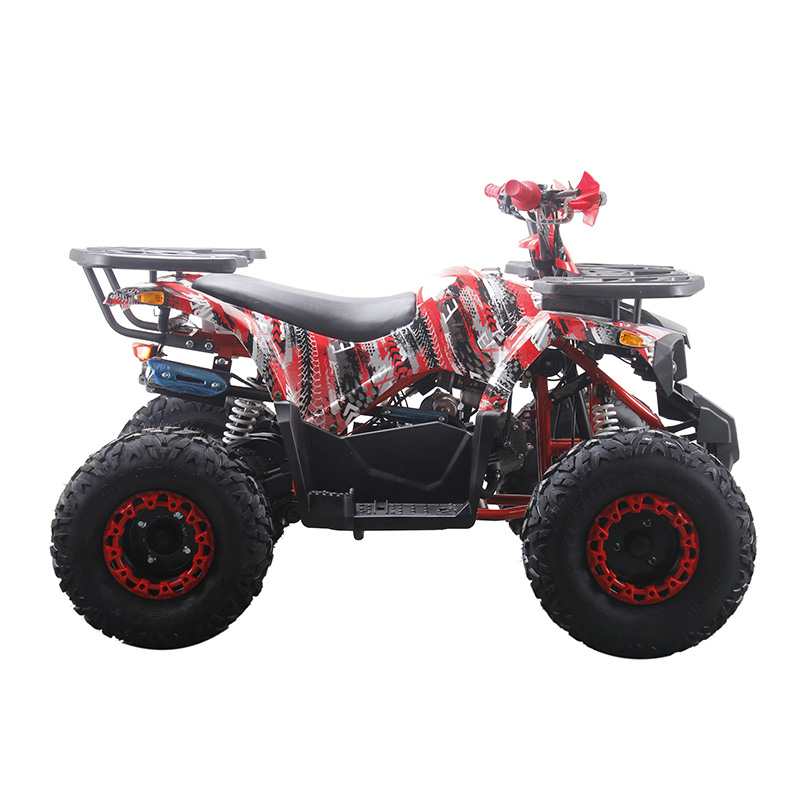

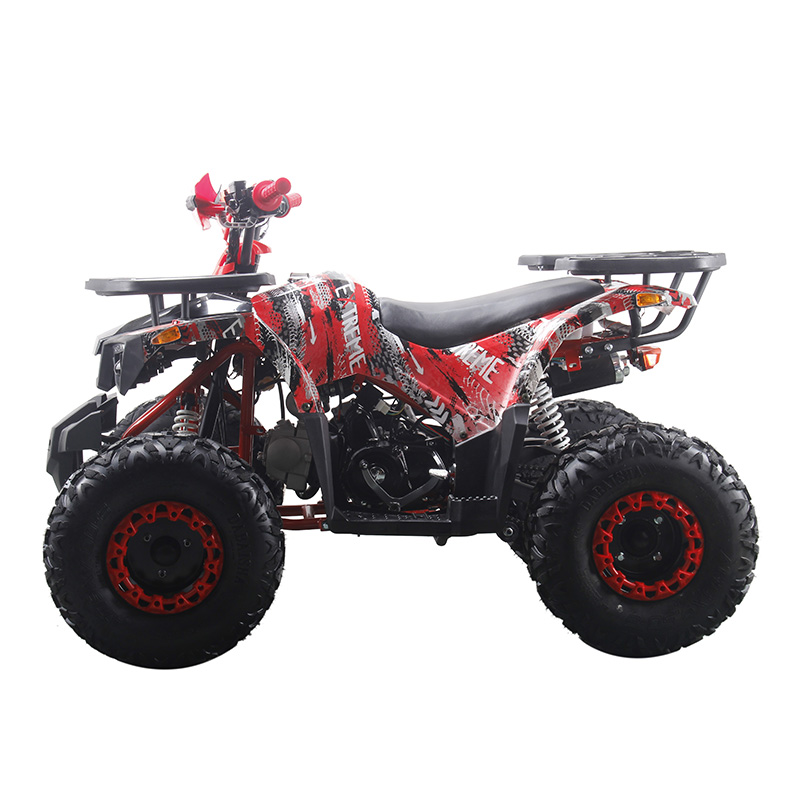

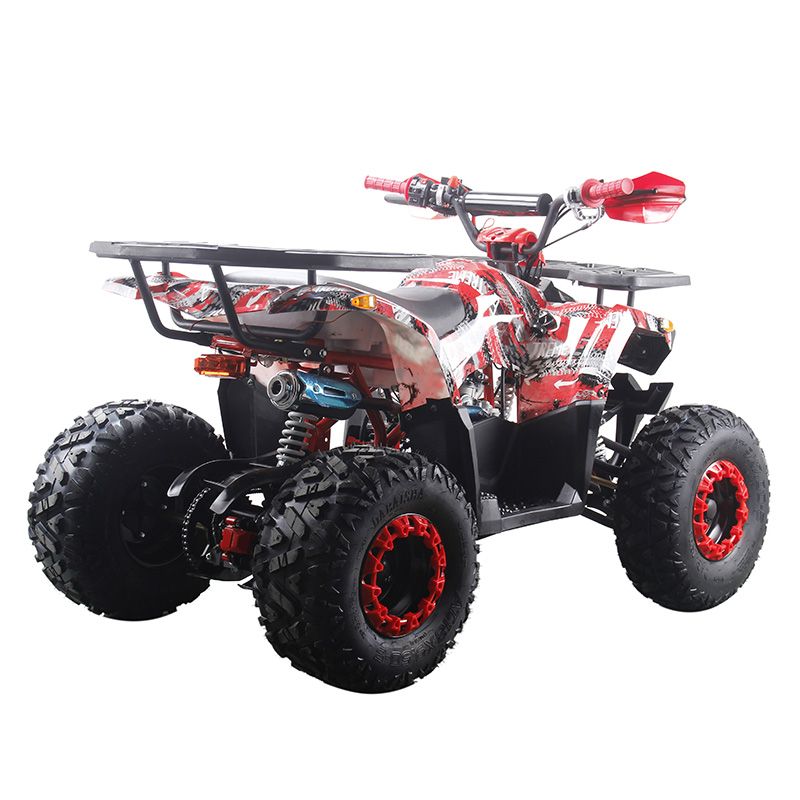

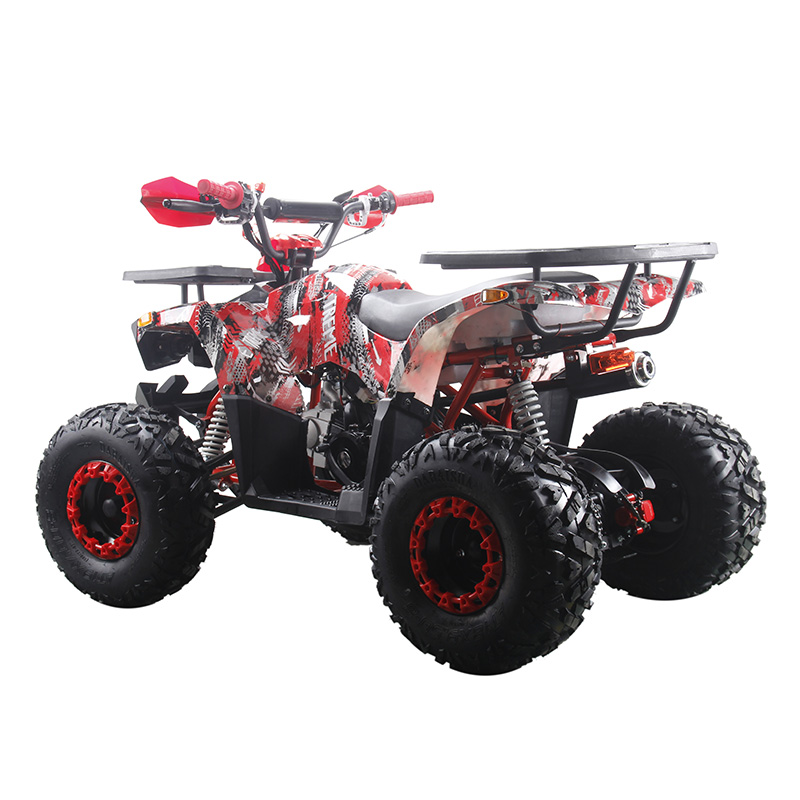

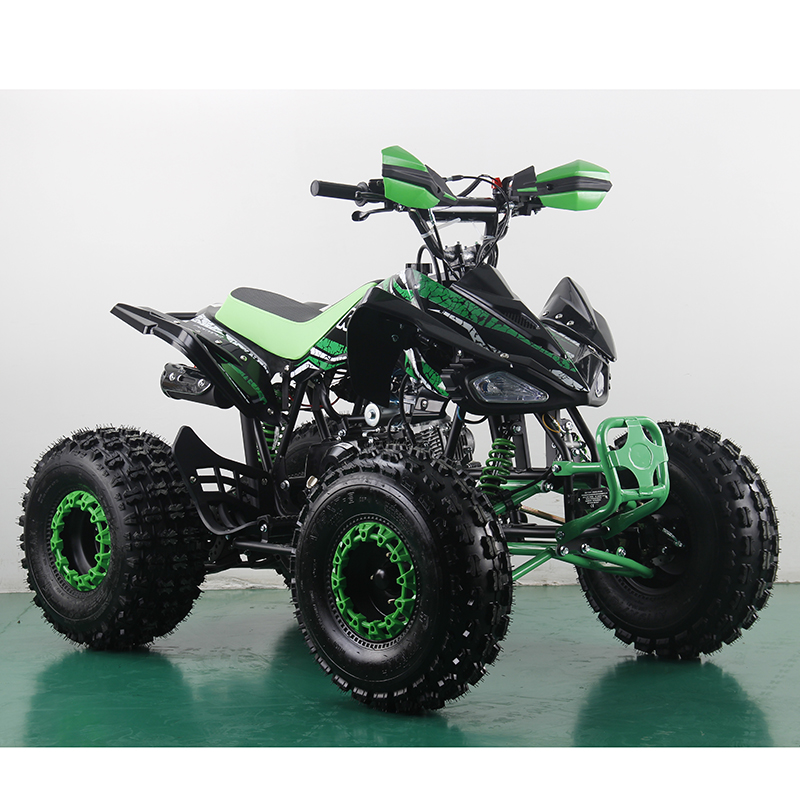

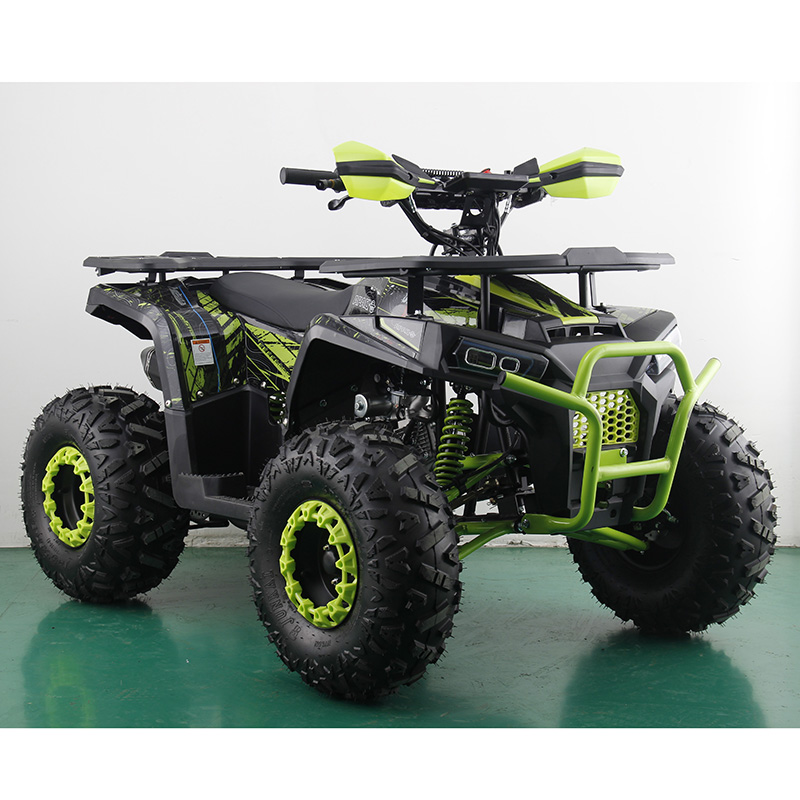

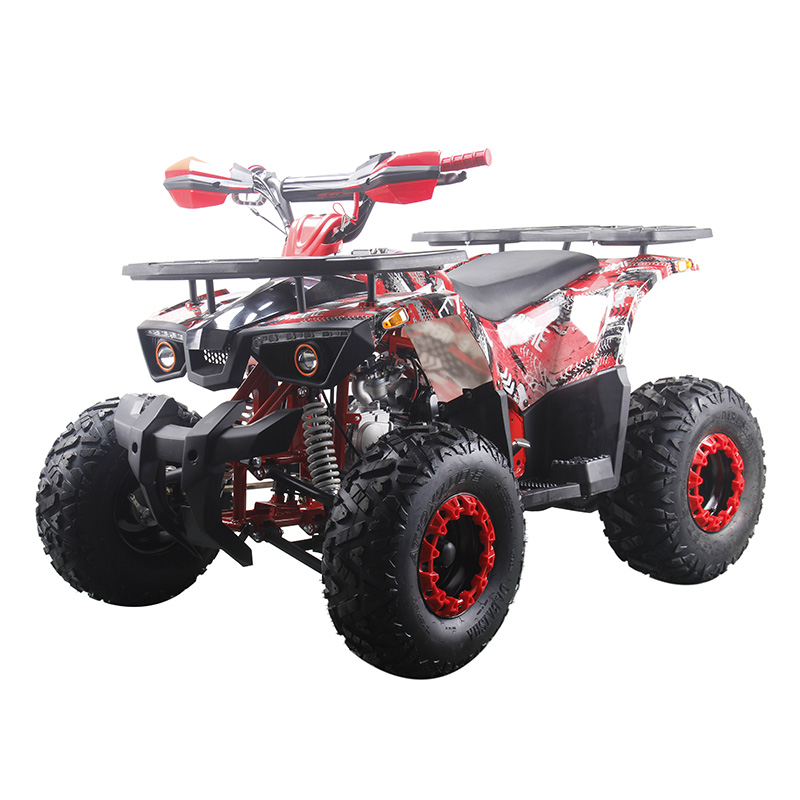

125cc quad bike 125cc ATV four wheeler motorcycle

Description

APQ125-1

Engine

125cc air-cooling Single-cylinder four Stroke, full automatic, electric start (110cc available)

Transmission

chain drive

Plastic

Camo plastic, new bull

Ignition mode

CDI

Frame

heavy duty steel frame

Handlebar

steel handlebar,with protector

Exhaust

steel exhaust pipe

Front suspension

high performance double spring shock absorber

Rear suspension

single spring rear shock absorber

Max load

150kgs

Tank capacity

3L

Wheel

steel wheels front/rear 7inchrim cover

Carton size

1250X770X650mm

Loading qty

20FT: 36pcs; 40HQ: 108pcs



125cc quad bike 125cc ATV four wheeler motorcycle more details as follow:
Automatic Transmission

16 x 8-7 Tires have excellent traction

Speeds of up to 45mph

Great Headlights & Taillights

Comfortable Seat

Front and Rear Plastic Racks
Reverse Gear: full automatic dont have gear. If you need,we can match reverse gear for you.



Engine data:
Bore × Stroke: 54×54
Compression Ratio: 9.1:1
Max Power(Kw/r/m): 6.2Kw/7000
Max Torque(N·m/r/min): 9.0/5000
Max Speed: 35+ (Depending on Riders Weight and Road Conditions)
Battery: 12V/5Ah

Frame /Body/ Suspension / Brakes
Suspensions: oil pressure shock absorber

Front Hand Brake: Drum
Rear Foot Brake: Disc
Front Tires: 16X8-7
Rear Tires: 16X8-7

Capacities / Dimensions
Max Loading(Lbs): 154
Gross Weight (lbs): 220
Net Weight (lbs): 187
Overall Length: 60.2″
Overall Width: 37″
Overall Hight: 34.6″
Wheelbase: 35.4″
Seat Height: 27.6″
Ground Clearance(inch): 2.6″
Fuel Capacity: 2.5L

Safety / Control
Engine Kill Switch: Yes
Speed Limiter: Yes
Remote Control: No,  if you need, we can match.
Headlight: Yes
Tail Light: Yes
